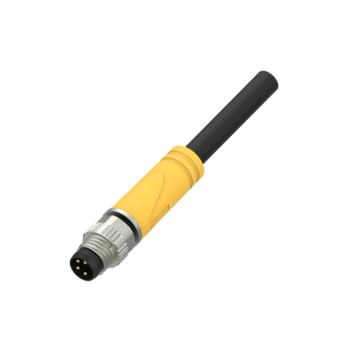

M8, male, straight, 4-pin, shielded, PVC cable

Description

This M8 straight male molded connector provides reliable connectivity for industrial automation and control applications. With 4 pins and A-coding, it ensures compatibility with standard devices. The connector includes a robust molded housing and a 2 m shielded PVC cable for dependable performance in harsh environments.

Feature	Description
Connector type	M8, circular, male
Orientation	Straight (180°)
Coding	A-coded
Number of pins	4
Shielding	Yes
Cable length	2 m
Cable structure	4 × 0.25 mm² (24 AWG)
Cable OD	4.4 mm
Outer jacket	PVC, black
Wire insulation	PVC
Rated voltage	60 V
Rated current	3 A
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Protection class (mated)	IP67
Ambient temperature	-25 °C to +85 °C
Housing material	TPU (yellow)
Coupling nut	Die-cast zinc, nickel-plated
Contact material	Copper, gold-plated
Seal material	FPM/FKM
Standard	IEC 61076-2-104

Benefits:

• Straight male M8 design with 4-pin shielded connection
• Durable molded housing and 2 m PVC cable
• Secure signal transmission with gold-plated contacts
• IP67-rated for demanding industrial environments

Compliance:

• IEC 61076-2-104 compliant
• RoHS and REACH compliant
