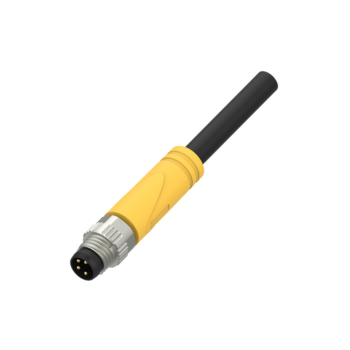

M8, male, straight, 4-pin, unshielded, PVC cable, 2 m

Description

This M8 straight male molded connector is designed for reliable connections in industrial automation and sensor systems. Featuring 4 pins with A-coding and a durable molded housing, it ensures secure signal transmission. The 2 m unshielded PVC cable provides flexibility for installations in control and monitoring equipment.

Feature	Description
Connector type	M8, circular, male
Orientation	Straight (180°)
Coding	A-coded
Number of pins	4
Shielding	No
Cable length	2 m
Cable structure	4 × 0.25 mm² (24 AWG)
Cable OD	4.4 mm
Outer jacket	PVC, black
Wire insulation	PVC
Rated voltage	60 V
Rated current	3 A
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Protection class (mated)	IP67
Ambient temperature	-25 °C to +85 °C
Housing material	TPU (yellow)
Coupling nut	Die-cast zinc, nickel-plated
Contact material	Copper, gold-plated
Seal material	FPM/FKM
Standard	IEC 61076-2-104

Benefits:

• Reliable 4-pin signal connectivity
• Straight male design for easy integration
• Durable molded PVC cable, 2 m length
• IP67 protection for harsh environments

Compliance:

• IEC 61076-2-104 compliant
• RoHS and REACH compliant
