M8, male, straight, 3-pin, unshielded, PVC cable, 2 m

M8, male, straight, 3-pin, unshielded, PVC cable, 2 m

6,58 €

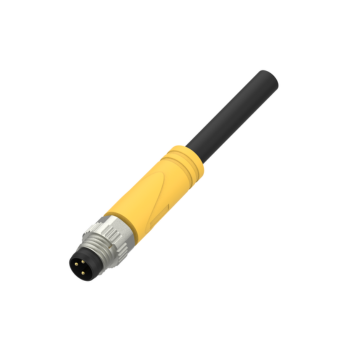

M8 male straight circular connector, 3-pin, unshielded, with black PVC cable (2 m). Robust molded cordset with IP67 protection for automation and sensors.

Category:

Description

This M8 straight male connector with 3 pins is designed for industrial automation and sensor/actuator connectivity. It features a molded PVC cable for flexibility and durability, with A-coding and unshielded construction. Gold-plated contacts and IP67 protection ensure stable performance in demanding environments.

Feature Description
Connector type M8, circular, male
Orientation Straight (180°)
Coding A-coded
Number of pins 3
Shielding No
Cable length 2 m
Cable structure 3 × 0.25 mm² (24 AWG)
Cable jacket PVC, black
Cable OD 4.4 mm
Rated voltage 60 V
Rated current 3 A
Contact material Copper, gold-plated
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Standard IEC 61076-2-104

Benefits:

  • Straight male design for universal industrial use
  • Durable PVC cable with molded connection
  • Gold-plated contacts for reliable conductivity
  • Sealed to IP67 for harsh environments

Compliance:
