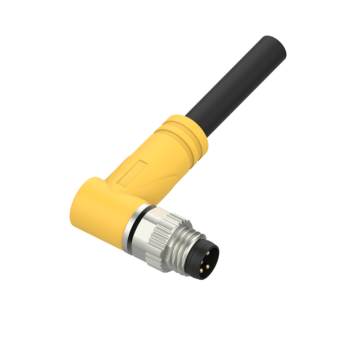

M8, Male, Angled, 4-pin, Shielded, PVC cable, 2 m

M8, Male, Angled, 4-pin, Shielded, PVC cable, 2 m

11,27 €

Pre-assembled M8 male angled connector, 4-pin A-coded, shielded PVC cable, 2 m. Designed for compact and reliable connections in industrial automation.

Category:

Description

This M8 angled male molded connector provides reliable signal and power transmission for industrial automation and sensor applications. Featuring 4 pins with A-coding and robust molding, it ensures secure operation in demanding environments. The 2 m shielded PVC cable enhances durability and noise immunity.

Feature Description
Connector type M8, circular, male
Orientation Angled (90°)
Coding A-coded
Number of pins 4
Shielding Yes
Cable length 2 m
Cable structure 4 × 0.25 mm² (24 AWG)
Cable OD 4.4 mm
Outer jacket PVC, black
Wire insulation PVC
Rated voltage 60 V
Rated current 3 A
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Housing material TPU (yellow)
Coupling nut Die-cast zinc, nickel-plated
Contact material Copper, gold-plated
Seal material FPM/FKM
Standard IEC 61076-2-104

Benefits:

  • Angled male design for space-constrained installations
  • Shielded PVC cable for improved EMC protection
  • Durable molded housing for long service life
  • Reliable 4-pin A-coded connectivity
  • IP67 protection ensures performance in harsh environments

Compliance:

  • IEC 61076-2-104 compliant
  • RoHS and REACH compliant
