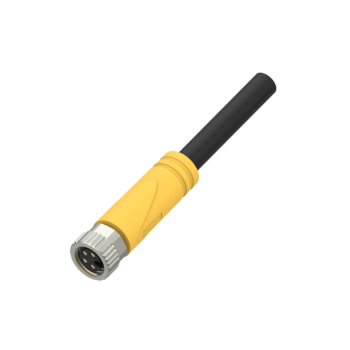

M8, female, straight, 4-pin, unshielded, PVC cable, 2 m

M8, female, straight, 4-pin, unshielded, PVC cable, 2 m

8,00 €

M8 straight female 4-pin connector with 2 m PVC cable, unshielded, A-coded, IP67 rated for industrial signal and sensor connections.

Category:

Description

This M8 straight female molded connector is designed for industrial signal and sensor applications. Featuring 4 pins with A-coding, it provides reliable connectivity in automation and control systems. The connector comes pre-assembled with a 2 m PVC cable, making it easy to install and use in demanding environments.

Feature Description
Connector type M8 circular connector
Gender Female
Orientation Straight (180°)
Number of pins 4
Coding A-code
Shielding No
Rated voltage 60 V
Rated current 3 A
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Cable length 2 m
Cable structure 4 × 0.25 mm² (24 AWG)
Cable OD 4.4 mm
Cable material PVC, black
Protection level IP67
Operating temperature -25 °C to +85 °C
Standard IEC 61076-2-104

Benefits:

  • Reliable 4-pin connectivity for industrial sensors and actuators
  • Compact straight design suitable for automation systems
  • Durable molded PVC cable ensures flexibility and strength
  • IP67 rated for dust and moisture protection

Compliance:

  • IEC 61076-2-104 standard compliant
  • RoHS and REACH compliant
