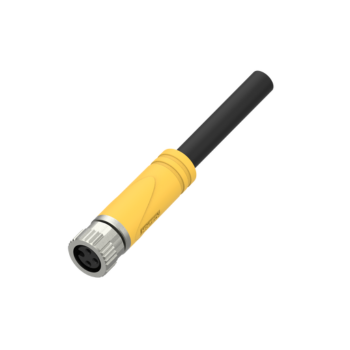

M8, female, straight, 3-pin, unshielded, PVC cable, 2 m

M8, female, straight, 3-pin, unshielded, PVC cable, 2 m

6,58 €

M8 female straight circular connector, 3-pin, unshielded, with black PVC cable (2 m). Reliable molded cordset for industrial signal applications, IP67 protection.

Category:

Description

This M8 circular connector assembly is designed for reliable sensor/actuator connections in industrial automation. It features a straight female connector with 3 pins, unshielded construction, and a durable PVC cable. The molded design ensures secure and vibration-resistant performance, making it suitable for signal and low-power transmission in harsh environments.

Feature Description
Connector type M8, circular, female
Orientation Straight (180°)
Coding A-coded
Number of pins 3
Shielding No
Cable length 2 m
Cable structure 3 × 0.25 mm² (24 AWG)
Cable jacket PVC, black
Cable OD 4.4 mm
Rated voltage 60 V
Rated current 3 A
Contact material Copper, gold-plated
Insulation resistance ≥100 MΩ
Contact resistance ≤5 mΩ
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Standard IEC 61076-2-104

Benefits:

  • Reliable sensor/actuator connectivity with M8 interface
  • Durable molded PVC cable for flexibility and strength
  • Gold-plated contacts for stable signal transmission
  • IP67 protection ensures performance in harsh environments

Compliance:

  • IEC 61076-2-104 compliant
  • RoHS and REACH compliant
