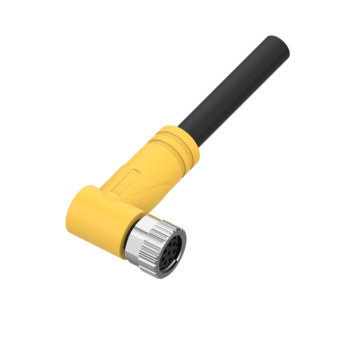

M8, female, angled, 8-pin, unshielded, PVC cable

Description

This M8 right-angled female molded connector is designed for compact installations in industrial automation and sensor systems. Featuring 8 pins with A-coding and a durable molded housing, it provides secure and reliable connectivity. The 2 m unshielded PVC cable ensures flexibility for signal and control applications.

Feature	Description
Connector type	M8, circular, female
Orientation	Angled (90°)
Coding	A-coded
Number of pins	8
Shielding	No
Cable length	2 m
Cable structure	8 × 0.14 mm² (26 AWG)
Cable OD	5.0 mm
Outer jacket	PVC, black
Wire insulation	PVC
Rated voltage	30 V
Rated current	1.5 A
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Protection class (mated)	IP67
Ambient temperature	-25 °C to +85 °C
Housing material	TPU (yellow)
Coupling nut	Die-cast zinc, nickel-plated
Contact material	Copper, gold-plated
Seal material	FPM/FKM
Standard	IEC 61076-2-104

Benefits:

• Compact angled female design for space-saving installations
• Durable molded housing with 2 m PVC cable
• Reliable 8-pin signal transmission
• IP67 protection for harsh industrial environments

Compliance:

• IEC 61076-2-104 compliant
• RoHS and REACH compliant
