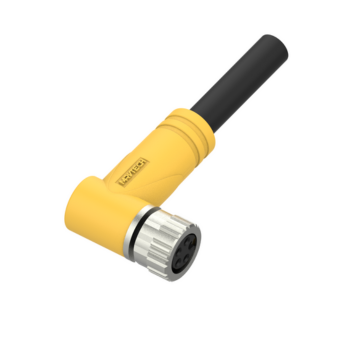

M8, female, angled, 4-pin, shielded, PVC cable, 2 m

Description

This M8 right-angled female molded connector is designed for secure and durable connections in industrial automation. Featuring 4 pins with A-coding and a shielded 2 m PVC cable, it ensures reliable signal transmission in harsh environments. The robust molded housing and IP67 rating provide strong resistance against dust and moisture.

Feature	Description
Connector type	M8, circular, female
Orientation	Angled (90°)
Coding	A-coded
Number of pins	4
Shielding	Yes
Cable length	2 m
Cable structure	4 × 0.25 mm² (24 AWG)
Cable OD	4.4 mm
Outer jacket	PVC, black
Wire insulation	PVC
Rated voltage	60 V
Rated current	3 A
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Protection class (mated)	IP67
Ambient temperature	-25 °C to +85 °C
Housing material	TPU (yellow)
Coupling nut	Die-cast zinc, nickel-plated
Contact material	Copper, gold-plated
Seal material	FPM/FKM
Standard	IEC 61076-2-104

Benefits:

• Angled female design saves space in tight installations
• Shielded PVC cable ensures stable signal transmission
• Durable molded housing with IP67 protection
• Reliable 4-pin A-coded connectivity for automation systems

Compliance:

• IEC 61076-2-104 compliant
• RoHS and REACH compliant
