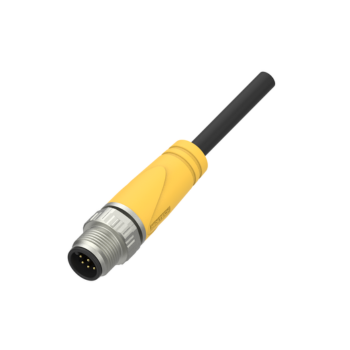

M12, male, straight, 8-pin, shielded, PVC cable, 2 m

M12, male, straight, 8-pin, shielded, PVC cable, 2 m

28,69 €

Pre-assembled M12 straight male cordset with 8 pins and A-coding. Equipped with a 2 m black PVC shielded cable for secure and reliable connections in industrial automation.

Category:

Description

This M12 straight male molded connector is designed for shielded and reliable connectivity in industrial automation and control applications. With 8 pins, A-coding, and a 2 m PVC shielded cable, it ensures stable performance and protection in harsh environments.

Feature Description
Connector type M12, circular, male
Orientation Straight (180°)
Coding A-coded
Number of pins 8
Shielding Yes
Cable length 2 m
Cable structure 8 × 0.25 mm² (24 AWG)
Shield structure Tinned metal mesh weave + aluminum foil
Weaving density ≥80%
Cable OD 6.2 mm
Outer jacket PVC, black
Wire insulation PVC
Rated voltage 30 V
Rated current 2 A
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Housing material TPU (yellow)
Coupling nut Die-cast zinc, nickel-plated
Contact material Copper, gold-plated
Seal material FPM/FKM
Standard IEC 61076-2-101

Benefits:

  • Straight 8-pin male design with A-coding for versatile connectivity
  • Durable 2 m black PVC shielded cable
  • Gold-plated copper contacts for enhanced conductivity
  • IP67 protection for use in demanding industrial environments

Compliance:

  • IEC 61076-2-101 standard compliant
  • RoHS and REACH compliant
