M12, male, straight, 4-pin, unshielded, PVC cable, 2 m

M12, male, straight, 4-pin, unshielded, PVC cable, 2 m

7,29 €

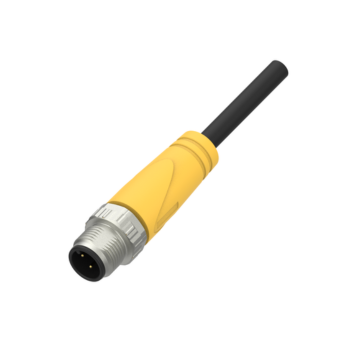

Pre-assembled M12 straight male molded connector with 4 pins, A-coding, and a durable PVC housing. Equipped with a 2 m unshielded PVC cable for reliable signal and control connections in industrial automation systems.

Category:

Description

This M12 straight male molded connector is designed for reliable connections in industrial automation and control systems. Featuring 4 pins with A-coding and a robust molded housing, it ensures secure performance in demanding environments. The 2 m unshielded PVC cable provides flexibility for various signal and control applications.

Feature Description
Connector type M12, circular, male
Orientation Straight (180°)
Coding A-coded
Number of pins 4
Shielding No
Cable length 2 m
Cable structure 4 × 0.34 mm² (22 AWG)
Cable OD 5.2 mm
Outer jacket PVC, black
Wire insulation PVC
Rated voltage 250 V
Rated current 4 A
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Housing material TPU (yellow)
Coupling nut Die-cast zinc, nickel-plated
Contact material Copper, gold-plated
Seal material FPM/FKM
Standard IEC 61076-2-101

Benefits:

  • Straight male design for versatile industrial use
  • Durable molded housing with 2 m PVC cable
  • Reliable 4-pin A-coded connectivity
  • IP67 protection for harsh environments

Compliance:

  • IEC 61076-2-101 compliant
  • RoHS and REACH compliant
