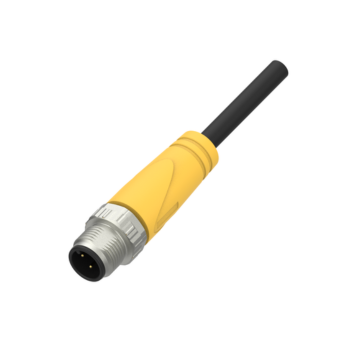

M12, male, straight, 4-pin, unshielded, PVC cable

Description

This M12 straight male molded connector is designed for reliable performance in industrial automation and sensor systems. Featuring 4 pins with A-coding and a durable molded housing, it ensures secure and efficient connectivity. The 2 m unshielded PVC cable provides flexibility for signal and control applications.

Feature	Description
Connector type	M12, circular, male
Orientation	Straight (180°)
Coding	A-coded
Number of pins	4
Shielding	No
Cable length	2 m
Cable structure	4 × 0.25 mm² (22 AWG)
Cable OD	5.0 mm
Outer jacket	PVC, black
Wire insulation	PVC
Rated voltage	250 V
Rated current	4 A
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Protection class (mated)	IP67
Ambient temperature	-25 °C to +85 °C
Housing material	TPU (yellow)
Coupling nut	Die-cast zinc, nickel-plated
Contact material	Copper, gold-plated
Seal material	FPM/FKM
Standard	IEC 61076-2-101

Benefits:

• Robust straight male design for reliable connectivity
• Durable housing with 2 m PVC cable
• 4-pin A-coded interface for industrial signals
• IP67 protection ensures suitability for harsh environments

Compliance:

• IEC 61076-2-101 compliant
• RoHS and REACH compliant
