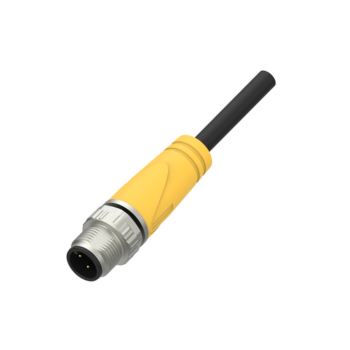

M12, Male, Straight, 4-pin, Shielded, PVC cable

M12, Male, Straight, 4-pin, Shielded, PVC cable

13,85 €

Pre-assembled M12 male straight cordset, 4-pin A-coded, 2 m shielded PVC cable. Provides secure and EMI-protected connections for industrial automation systems.

Category:

Description

This M12 straight male molded connector is designed for reliable and shielded connections in industrial automation and control systems. Featuring 4 pins with A-coding and a robust molded housing, it ensures high performance and signal protection. The 2 m shielded PVC cable with tinned copper braid and aluminum foil provides superior EMI resistance in demanding environments.

Feature Description
Connector type M12, circular, male
Orientation Straight (180°)
Coding A-coded
Number of pins 4
Shielding Yes (braid + aluminum foil, ≥80% coverage)
Cable length 2 m
Cable structure 4 × 0.34 mm² (22 AWG)
Cable OD 5.2 mm
Outer jacket PVC, black
Wire insulation PVC
Rated voltage 250 V
Rated current 4 A
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Housing material TPU (yellow)
Coupling nut Die-cast zinc, nickel-plated
Contact material Copper, gold-plated
Seal material FPM/FKM
Standard IEC 61076-2-101

Benefits:

  • Straight male design for industrial connectivity
  • 2 m PVC shielded cable for EMI protection
  • Reliable 4-pin A-coded connection
  • IP67 protection for harsh environments

Compliance:

  • IEC 61076-2-101 compliant
  • RoHS and REACH compliant
