M12, male, straight, L-coded, 5-pos., unshielded, plastic housing, screw terminal

M12, male, straight, L-coded, 5-pos., unshielded, plastic housing, screw terminal

27,47 €

ℹ️ Component product
This product can only be purchased as part of a module configuration.

Go to Configurator

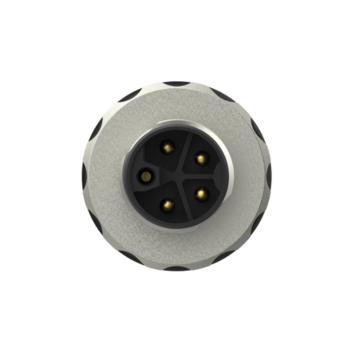

M12 circular connector with straight male plug, L-coding, 5 positions, and unshielded plastic housing. Field-wirable via secure screw-terminal connection. Suitable for power supply in industrial applications.

Category:

Description

This M12 circular connector is designed for high-power industrial applications such as power distribution and DC drives. It features a straight male plug with L-coding and 5 positions, ideal for power supply tasks up to 16 A and 63 VDC.

The unshielded nylon housing provides reliable insulation and mechanical protection. Field-wirable screw terminals allow secure, on-site cable connection. Suitable for harsh environments with IP67 protection rating.

Feature Description
Connector type M12, circular, male
Orientation Straight (180°)
Coding L-coded (power supply)
Number of positions 5
Shielding No
Connection method Screw terminal (field-wirable)
Cable diameter 8–10 mm
Rated voltage 63 VDC
Rated current 16 A
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Housing material Nylon+GF (black)
Contact material Copper, silver-plated
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Standard IEC 61076-2-101

Benefits:

  • High current handling up to 16 A for power applications
  • Compact and robust M12 design with L-coding
  • Easy screw-terminal connection without special tools
  • IP67 protection and durable construction for demanding environments

Compliance:

  • IEC 61076‑2‑101 compliant
  • RoHS and REACH compliant
