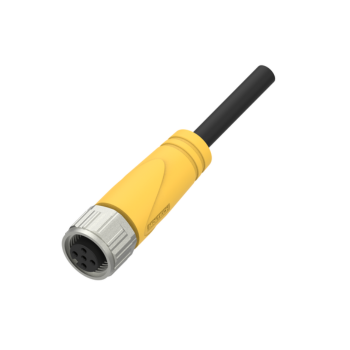

M12, female, straight, 3-pin, unshielded, PVC cable, 5 m

Description

This M12 straight female molded connector is designed for reliable signal and power transmission in industrial automation. Featuring 3 pins with A-coding and a durable 5 m unshielded PVC cable, it provides dependable connectivity for sensors, actuators, and control systems.

Feature	Description
Connector type	M12, circular, female
Orientation	Straight (180°)
Coding	A-coded
Number of pins	3
Shielding	No
Cable length	5 m
Cable structure	3 × 0.34 mm² (22 AWG)
Cable OD	5.2 mm
Outer jacket	PVC, black
Wire insulation	PVC
Rated voltage	250 V
Rated current	4 A
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Protection class (mated)	IP67
Ambient temperature	-25 °C to +85 °C
Housing material	TPU (yellow)
Coupling nut	Die-cast zinc, nickel-plated
Contact material	Copper, gold-plated
Seal material	FPM/FKM
Standard	IEC 61076-2-101

Benefits:

• Straight female 3-pin M12 connector with A-coding
• Durable 5 m PVC cable for industrial use
• Reliable connectivity with gold-plated contacts
• IP67 protection for harsh environments

Compliance:

• IEC 61076-2-101 compliant
• RoHS and REACH compliant
