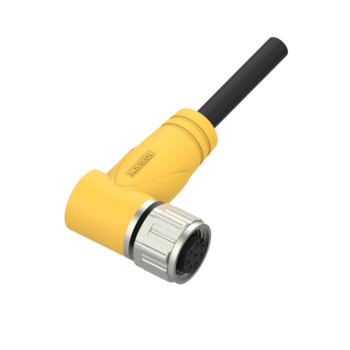

M12, female, angled, 8-pin, shielded, PVC cable, 2 m

M12, female, angled, 8-pin, shielded, PVC cable, 2 m

28,69 €

Pre-assembled M12 right-angled female cordset with 8 pins and A-coding. Comes with a 2 m black PVC shielded cable for reliable signal and control connections in demanding environments.

Category:

Description

This M12 right-angled female molded connector provides secure and shielded connectivity for industrial automation and control systems. Equipped with 8 pins, A-coding, and a durable 2 m PVC cable, it ensures reliable data and power transmission even in harsh environments.

Feature Description
Connector type M12, circular, female
Orientation Angled (90°)
Coding A-coded
Number of pins 8
Shielding Yes
Cable length 2 m
Cable structure 8 × 0.25 mm² (24 AWG)
Shield structure Tinned metal mesh weave + aluminum foil
Weaving density ≥80%
Cable OD 6.2 mm
Outer jacket PVC, black
Wire insulation PVC
Rated voltage 30 V
Rated current 2 A
Contact resistance ≤5 mΩ
Insulation resistance ≥100 MΩ
Protection class (mated) IP67
Ambient temperature -25 °C to +85 °C
Housing material TPU (yellow)
Coupling nut Die-cast zinc, nickel-plated
Contact material Copper, gold-plated
Seal material FPM/FKM
Standard IEC 61076-2-101

Benefits:

  • Compact 90° angled female design for space-saving installations
  • Durable 2 m black PVC shielded cable
  • 8-pin A-coded connectivity for reliable signal transmission
  • IP67 protection for industrial environments

Compliance:

  • IEC 61076-2-101 standard compliant
  • RoHS and REACH compliant
