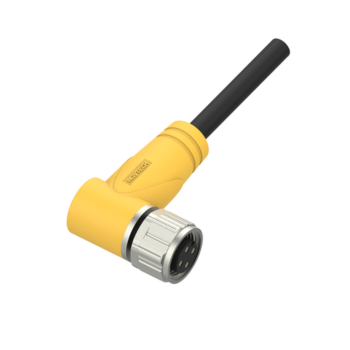

M12, female, angled, 4-pin, shielded, PVC cable

Description

This M12 angled female molded connector is designed for reliable connections in industrial automation and control systems. Featuring 4 pins with A-coding and a robust molded housing, it ensures secure performance in demanding environments. The 2 m shielded PVC cable with tinned metal mesh weave and aluminum foil provides excellent EMI protection for signal and control applications.

Feature	Description
Connector type	M12, circular, female
Orientation	Angled (90°)
Coding	A-coded
Number of pins	4
Shielding	Yes (tinned metal mesh weave + aluminum foil)
Cable length	2 m
Cable structure	4 × 0.34 mm² (22 AWG)
Cable OD	5.2 mm
Outer jacket	PVC, black
Wire insulation	PVC
Rated voltage	250 V
Rated current	4 A
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Protection class (mated)	IP67
Ambient temperature	-25 °C to +85 °C
Housing material	TPU (yellow)
Coupling nut	Die-cast zinc, nickel-plated
Contact material	Copper, gold-plated
Seal material	FPM/FKM
Standard	IEC 61076-2-101

Benefits:

• Angled female design for space-saving industrial use
• Durable molded housing with 2 m PVC cable
• Reliable 4-pin A-coded shielded connectivity
• IP67 protection for harsh environments

Compliance:

• IEC 61076-2-101 compliant
• RoHS and REACH compliant
