M12, male, straight, A-coded, 4-pos., unshielded, plastic housing, screw terminal

M12, male, straight, A-coded, 4-pos., unshielded, plastic housing, screw terminal

7,79 €

ℹ️ Component product
This product can only be purchased as part of a module configuration.

Go to Configurator

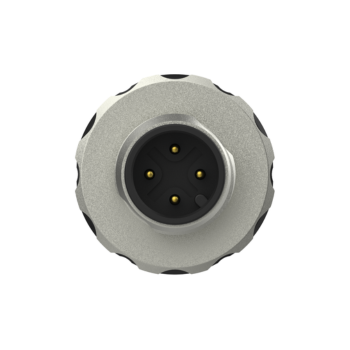

M12 circular connector with straight male plug, A-coding, 4 positions, and a compact unshielded plastic housing. Designed for signal transmission in industrial applications. Field-wirable via secure screw terminal connection.

Category:

Description

This compact and robust M12 circular connector is ideal for signal transmission in industrial environments.
It features a straight male plug with A-coding and supports 4-position wiring.
The connector is field-wirable and enables secure, tool-free on-site termination using a push-in spring connection method.

The unshielded plastic housing offers a lightweight solution for standard applications where EMC protection is not required.
The connector’s clear, color-coded and numbered terminal layout ensures easy and reliable installation.

Feature Description
Connector type M12, circular, male
Orientation Straight
Coding A-coded
Number of positions 4
Shielding No (unshielded)
Connection method Push-in spring connection (tool-free, field-wirable)
Cable diameter 4 mm – 8 mm
Rated voltage 60 V DC
Rated current Up to 4 A
Transmission speed 100 Mbps
Protection class (mated) IP65 / IP67
Ambient temperature -40 °C to +85 °C
Housing material Plastic
Contact surface Nickel / Gold (Ni/Au)
Mating cycles ≥ 100
Standards IEC 61076-2-101, UL 94 V-0

Benefits:

  • Compact and lightweight for space-saving installations
  • Quick and tool-free field wiring via push-in connection
  • Reliable mechanical performance (≥ 100 mating cycles)
  • Cost-effective unshielded solution for signal applications

Compliance:

  • RoHS, REACH
  • IEC 61076-2-101 (M12 connector standard)
  • Fire resistance: UL 94 V-0
