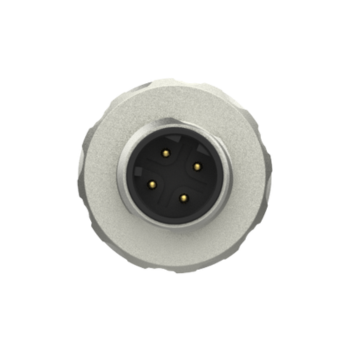

M12, male, straight, D-coded, 4-pos., shielded, metal housing, screw terminal

Description

This robust and versatile M12 circular connector is designed for industrial Ethernet and PROFINET applications.
It features a straight male plug with D-coding, ideal for secure, high-speed data transmission (up to 100 Mbps).
The connector is field-wirable, supporting fast and reliable on-site termination using a screw-clamp connection method.

The metal housing provides excellent EMC shielding, ensuring signal integrity even in harsh environments.
The connector supports 4-position wiring, with clear color-coded and numbered wire assignments.

Feature	Description
Connector type	M12, circular, male
Orientation	Straight
Coding	D-coded (PROFINET / Ethernet, CAT5)
Number of positions	4
Shielding	Yes, EMC shielded (metal housing)
Connection method	Screw terminal (field-wirable)
Cable diameter	4 mm – 8 mm
Rated voltage	48 V AC / 60 V DC
Rated current	Up to 4 A
Transmission speed	100 Mbps
Protection class (mated)	IP65 / IP67
Ambient temperature	-40 °C to +85 °C
Housing material	Zinc die-cast, nickel-plated
Contact surface	Nickel / Gold (Ni/Au)
Mating cycles	≥ 100
Standards	IEC 61076-2-101, EN 50155, UL 94 V-0

Benefits:

• Secure and fast connection for PROFINET networks
• Tool-free, intuitive field termination with screw connections
• High mechanical durability (≥ 100 mating cycles)
• Reliable performance in demanding industrial environments

Compliance:

• RoHS, REACH
• IEC 61076-2-101 (M12 connector standard)
• Fire resistance: UL 94 V-0
• Shock and vibration resistant per EN 50155:2001
