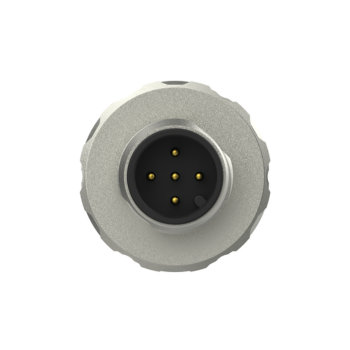

M12, male, straight, A-coded, 5-pos., shielded, metal housing, screw terminal

Description

This M12 circular connector offers robust performance in industrial signal applications.
It features a straight male plug with A-coding and 5 contacts, housed in a die-cast zinc nickel-plated body with EMC shielding.
The field-wirable screw terminal design allows easy and secure assembly in demanding environments.

Feature	Description
Connector type	M12, circular, male
Orientation	Straight (180°)
Coding	A-coded (signal)
Number of positions	5
Connection method	Screw terminal (field-wirable)
Rated voltage	250 V
Rated current	4 A
Shielding	Yes (metal housing, EMC performance)
Contact resistance	≤5 mΩ
Insulation resistance	≥100 MΩ
Cable gland	4–8 mm OD
Wire gauge	24–18 AWG
Contact material	Copper, gold-plated
Housing material	Die-cast zinc, nickel-plated
Seal material	FPM/FKM
Protection class	IP67 (mated)
Ambient temperature	–25 °C to +85 °C
Standard	IEC 61076-2-101

Benefits:

• Reliable signal transmission with A-coding and gold-plated contacts
• Easy installation with screw terminals and 180° straight design
• EMC shielding and IP67 sealing for harsh environments

Compliance:

• RoHS- and REACH-conform
• IEC 61076-2-101 compliant design
